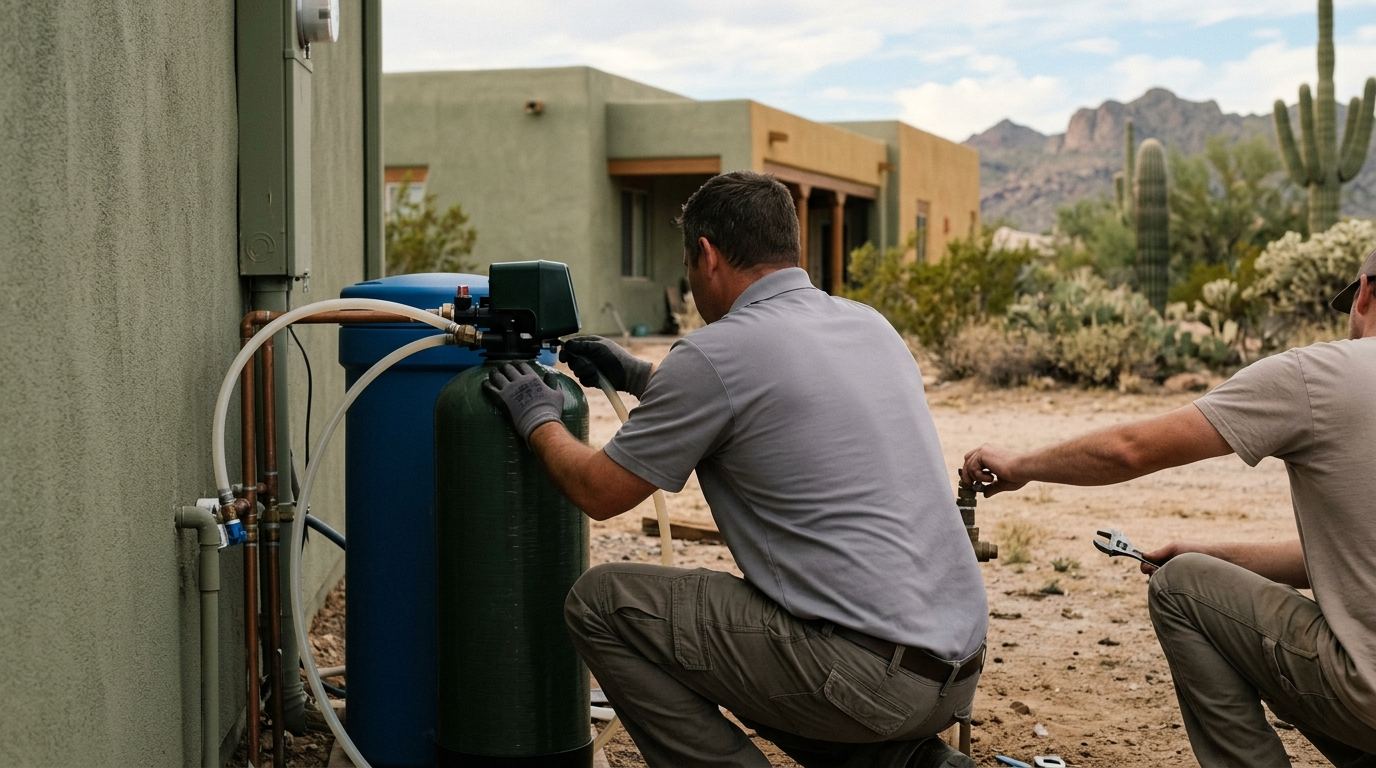

Water softener installation, with the trade-offs on the table

Hardness, and how to find your actual number

Water hardness is simply the amount of dissolved calcium and magnesium the water carries, usually stated in grains per gallon. Across Arizona those numbers run high, high enough that the effects are visible on your fixtures rather than theoretical.

Two things worth understanding before you spend anything. First, hardness varies by provider and by community, sometimes considerably between neighboring areas drawing from different sources. There is no single Arizona figure, and anyone who quotes you one is generalising. Second, you can find your own number without buying anything: most water providers publish an annual water quality report that states hardness, and an inexpensive test kit from a hardware store gives you a reading at the tap in a couple of minutes. On a private well, testing is the only way to know, and composition differs well to well.

Rough orientation on what the number means: in the low single digits, softening is hard to justify. In the middle of the range it becomes a reasonable choice depending on how long you are staying and how much the scale bothers you. At the higher end, which describes a good deal of this state, the case is strong, not for comfort, but because of what scale is doing to your water heater and valves.

We would rather you start with the number than with a quote. It is the one piece of information that makes this decision straightforward, and it costs nothing.

How ion exchange actually works

A conventional softener is a tank of resin beads carrying sodium or potassium ions. Hard water passes through, and the calcium and magnesium swap places with the sodium, the minerals stick to the resin and sodium goes into the water. That is the whole mechanism, and it is why the output is called soft rather than filtered.

The resin eventually fills up. At that point the unit regenerates: it draws brine from the salt tank, flushes the accumulated calcium and magnesium off the resin, and sends that concentrated rinse to a drain. Then it returns to service. This is why a softener needs both a salt supply and a drain connection, and why it discharges water periodically.

Regeneration is triggered one of two ways, and the difference matters. A timer unit regenerates on a fixed schedule whether it needs to or not. A metered unit measures actual water use and regenerates when the resin is genuinely exhausted. Metered units use noticeably less salt and less water, particularly in a household whose usage varies or that sits empty for stretches, which describes a great many Arizona homes. On this point we would say plainly: choose metered.

Sizing is hardness multiplied by usage

Softener capacity is expressed in grains, how much hardness the unit can remove between regenerations. Sizing is arithmetic rather than judgement: your hardness in grains per gallon, times your household’s daily gallons, gives daily grain load. From there you choose a unit that regenerates at a sensible interval rather than constantly.

Getting it wrong has consequences in both directions. Undersized and the unit regenerates too often, which burns salt, wastes water and wears the valve. Oversized and the resin sits partially exhausted for long periods, which is not ideal for the resin and means you paid for capacity you never use.

What a proper sizing conversation asks: your hardness figure, how many people live there, whether anyone is home during the day, whether you have a large soaking tub or an irrigation system on the softened line, and, specifically in Arizona, whether the house sits empty for part of the year. A seasonal household has a genuinely different profile from a year-round one and should not be sized as though it were.

The loop, the drain and where the unit goes

Three practical questions decide how straightforward the installation is.

Is there a loop? Many Arizona homes, particularly newer subdivisions, were plumbed with a softener loop, a pair of stubbed connections, usually in the garage, ready for a unit. If yours has one, installation is comparatively simple. If not, the supply has to be cut into and rerouted through the unit, which is more work and affects the price. Worth checking before you get quotes: look for two capped pipes close together on a garage wall, often near the water heater.

Where does the discharge go? Regeneration sends brine to a drain, and it needs an approved termination with a proper air gap, not simply a hose pushed into a standpipe. A garage laundry standpipe or a nearby drain usually serves. If there is nothing suitable close by, a drain line has to be run, and that is sometimes the detail that decides the unit’s location.

What gets softened? This is a decision, not a default. Generally you want softened water to the water heater, the bathrooms and the laundry. You generally do not want it on exterior hose bibs and irrigation, because there is no benefit to landscape watering and it wastes capacity. Many people also leave one kitchen tap on unsoftened water for drinking. How the plumbing is arranged at installation determines all of that, and it is much easier to specify than to change later.

Salt, maintenance and what it costs to run

Softeners are low-maintenance rather than no-maintenance, and the honest picture is worth having before you commit.

Salt. You add bags to the brine tank periodically, how often depends on hardness, usage and whether the unit is metered. In a hard-water household this is a routine errand, not an occasional one. Sodium chloride is the common choice; potassium chloride is an alternative for households limiting sodium, and it costs more.

Salt bridging. The most common softener fault we hear about, and it is not a fault at all. A hard crust forms across the salt, leaving a cavity underneath so the unit draws water without picking up brine. The water goes back to being hard and nothing appears broken. Breaking the crust up occasionally prevents it. If your water has quietly gone hard again, check this before calling anyone.

Resin. Lasts many years but not forever, and is affected by chlorine in municipal supply and by iron on some wells. Eventually it loses capacity and gets replaced.

The valve and the brine line. The mechanical parts. Occasional service, and worth a look if regeneration behavior changes.

There is also a genuine water and salt discharge cost to regeneration, which is worth knowing about in a state where efficiency matters. A metered unit reduces it substantially compared with a timer.

What softening does, and what it does not

Being precise here saves disappointment.

It does: markedly slow scale accumulation in your water heater, which is the single biggest financial argument; keep valve cartridges, fill valves and aerators working rather than seizing; stop new scale film building on glass, tile and fixtures; make soap and detergent lather properly, so you use less; and extend the descaling interval on a tankless unit considerably, see tankless descaling.

It does not: filter the water in any meaningful sense, softening removes hardness minerals, not contaminants, sediment, chlorine taste or anything else; remove scale that has already formed inside pipes or a heater, which stays where it is; improve the taste of your drinking water, and some people find soft water tastes flatter; or fix low pressure, which is a supply or regulator problem, see water pressure regulator.

If your concern is taste, chlorine, sediment or a specific contaminant, softening is the wrong tool. That is whole-house filtration or reverse osmosis, and the two often get conflated by people selling both.

Salt-free alternatives, honestly assessed

There is a category of salt-free conditioners, template-assisted crystallisation and similar approaches, and they are widely marketed alongside softeners as though they were equivalent. They are not, and the honest description matters.

These devices do not remove hardness. The minerals stay in the water. What they do is alter how those minerals behave, encouraging them to form stable crystals that are less inclined to adhere to hot surfaces. The result is generally reduced scale formation without softened water.

Where that is a reasonable answer: no drain is available; regeneration discharge is a concern; nobody will maintain a salt supply; sodium is being avoided; or hardness is moderate rather than severe.

Where a conventional softener is the better answer: hardness at the higher end of the range; you actually want the feel and detergent behavior of soft water; and you are trying to protect a water heater or a tankless unit in the hardest water, where genuine removal outperforms conditioning.

What we would push back on is any claim that a salt-free device does the same job as a softener. Different mechanism, different result, sometimes the right choice.

The bypass, and why it matters in this state

This is Arizona-specific and it gets missed constantly.

If a house sits empty for months, which describes a large share of housing here, a softener left in service can regenerate on schedule into a closed, unused system, cycling water and salt for nothing and discharging to drain with nobody present. On a timer unit that continues all summer.

The answer is a bypass valve, fitted at installation, that takes the unit out of circuit in seconds. Combined with shutting the water off at the main, it is part of closing a house properly. A metered unit is better behaved in an empty house than a timer, since it regenerates on use rather than schedule, but bypassing is still the right move.

Ask for a bypass explicitly and ask to be shown how to use it. The full closing-up routine is on the vacant home water shutoff prep page.

What should be in the quote

Ask for these itemised. Softener quotes vary widely in what they cover, and the differences are rarely visible in the headline number.

The unit’s grain capacity and whether it is metered or timer-controlled. The hardness figure it was sized against, if none is stated, ask why. Connection to an existing loop, or the cost of cutting in if there is no loop. The drain line and its approved termination with air gap. A bypass valve. Which lines are softened and which are deliberately left hard. The brine tank and initial salt. Removal of any existing unit. And the permit where your municipality requires one.

Then one question that separates a considered installation from a quick one: what happens to the irrigation and exterior hose bibs. If the answer is that everything gets softened, the sizing is going to be wrong and you will be buying salt to water your plants.
