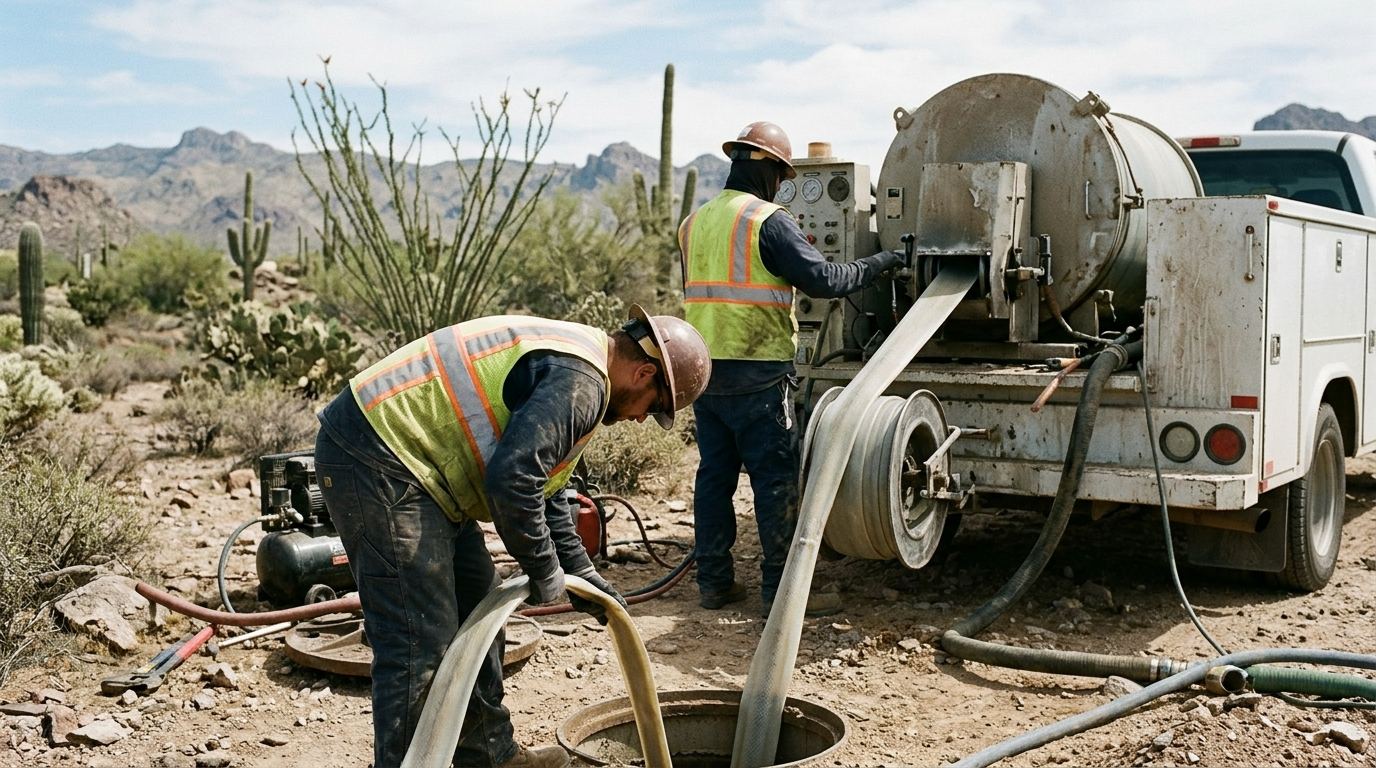

Trenchless sewer repair: new pipe without the trench

What trenchless means, and what it does not

It does not mean no digging. It means no continuous trench. Both principal methods need access pits, usually one near the building and one at the far end of the run, each a few feet across. Between those two points the work happens inside the existing pipe.

That distinction is worth understanding properly, because it is where the value sits. On a typical Arizona property the sewer lateral leaves the house, crosses a side yard, and runs under whatever the last three owners put in the front, decorative gravel, a driveway, a paver walkway, a block wall footing, a mature mesquite with irrigation threaded around its roots. Opening a trench through all of that means removing it and rebuilding it, and the rebuilding is frequently the larger half of the bill. Trenchless leaves it in place.

There are two methods, and they are genuinely different things rather than variations of one idea.

Lining, step by step

Cured-in-place pipe installs a new pipe inside the old one, using the old one as a mold.

Camera and assess. The line is inspected end to end to establish material, length, depth, defects, branch connections and whether it is a candidate at all. This is the step that decides the method, and skipping it is how trenchless jobs go wrong.

Clean, properly. The host pipe wall has to be taken back to something a resin can bond to. That means hydro jetting, and on cast iron often mechanical descaling with chain knockers or cutter heads. Grease, scale, root hair and corrosion crust all have to go.

Camera again. A second pass confirms the wall is clean and reveals defects the build-up was hiding, a crack packed with grease looks like nothing until the grease is gone. Better found now than after a liner has been installed over it.

Measure and saturate. The liner is cut to length and wetted out with resin, which begins a working window that the crew are then racing.

Install and inflate. The liner is pulled or inverted into position and inflated so it presses tight against the host pipe wall in its final shape.

Cure. Ambient, hot water, steam or ultraviolet light depending on the system. The resin hardens into a rigid, continuous, jointless pipe.

Reinstate and verify. Any branch connections are cut back open from inside, terminations are finished at each end, and a final camera pass documents the result.

What you end up with is a pipe with no joints along its length. Since roots enter at joints and cracks, that is the reason lining ends root intrusion rather than postponing it.

Pipe bursting

Bursting does not line the old pipe; it destroys it and replaces it. A conical bursting head is pulled through the existing line under considerable force, fracturing it outward into the surrounding soil, while new HDPE pipe is towed in immediately behind.

The advantages are real. You get entirely new pipe rather than a liner inside old pipe, at full diameter or larger, with fused joints that are as strong as the pipe itself. It handles a host pipe too far gone to line, and it can upsize a lateral that was undersized to begin with.

The constraints are equally real. It needs room for the soil to accept the fractured old pipe, which makes it unsuitable close to foundations, other utilities or a neighboring structure. It needs a continuous path, a full collapse blocks the head. And the pulling equipment needs larger pits than lining does.

In Arizona there is one more consideration: caliche does not compress the way soil does. Where the pipe sits in or against a hard cemented layer, bursting behaves differently and a contractor should say so rather than treating the ground as generic.

Why this matters more in Arizona than in most states

Three local factors push the arithmetic toward trenchless more often here than the national averages would suggest.

Caliche. The cemented calcium carbonate layer under much of the state ranges from crumbly to nearly concrete. A lateral sits several feet down, so open-cut excavation goes through it, and that means heavier equipment and more hours than the same trench in soil. Two access pits go through far less of it than forty feet of trench.

Hardscape and xeriscape. Arizona front yards are not lawns. They are decorative gravel over weed barrier, pavers, stamped concrete, block walls, boulders and mature desert plants that took fifteen years to look like that and cannot be lifted and replaced. Restoring all of it is expensive; a mature palo verde or ironwood cannot be restored at all.

Irrigation everywhere. Nearly every established Arizona property has drip irrigation threaded through the front yard. A trench cuts it repeatedly, and repairing an old system you did not install is its own small project.

When trenchless is the wrong answer

It is not universal, and a contractor who proposes it for every line is selling rather than assessing.

A belly. The most important exclusion on this page. A liner follows the existing shape, so lining a sagged section installs a permanent low spot in a brand new pipe. If the camera shows standing water in a sag, that section needs excavating and re-laying to grade. A quote to line a line with a known belly, without mentioning the belly, is a bad sign.

A collapse. Nothing to line, and nothing to pull a bursting head through. That section has to be dug.

Severe deformation. Advanced Orangeburg that has gone properly oval may not admit a liner, and even where it does the finished shape inherits the deformation.

A route or depth change. If the line needs to go somewhere else, or sit at a different depth, that is excavation by definition.

In each of those, conventional repair is the right answer, and sometimes the honest outcome is a hybrid, dig the sagged twelve feet, line the rest.

Preparation is most of the job

The visible part of a lining job takes hours. The part that determines whether it lasts fifty years happens before the liner goes anywhere near the pipe.

Cleaning has to be complete, because the bond to the host wall is what holds the liner in its final shape. Measurement has to be right, because a liner short of the connection leaves an unlined length exactly where roots were entering. The second camera pass has to actually happen, because defects hidden under build-up change the plan.

So when you compare quotes, compare what is included rather than the number. Cleaning method, whether there is a post-clean camera pass, how branch connections are handled, curing method, and what the final verification consists of. A cheaper quote that omits three of those is not cheaper.

Branch connections, the detail that catches people

A liner is continuous, which means it seals across every opening in the host pipe, including openings you want.

Most residential laterals have no branches between the house and the main, so this is often a non-issue. But add a casita, a guest house, a converted garage with a bathroom, a second kitchen, or an older wye from a previous addition, and there are connections that must be cut back open from inside after curing, normally with a robotic cutter.

Have every connection identified from the camera footage and written into the scope before work begins. A connection sealed and not reinstated presents as a completely blocked branch afterwards, and correcting it means going back into a pipe that has just been lined.

Compare total cost, not pipe cost

Per foot, trenchless materials and equipment cost more than pipe in a trench. That comparison is also close to meaningless on its own.

The real comparison is: excavation hours through caliche, spoil removal, the concrete or pavers or gravel that has to come up, the irrigation that gets cut, the plants that do not survive, the block wall section that has to be rebuilt, the compaction, and the restoration, against two access pits and a liner.

Under plain gravel in soft shallow ground, open cut frequently wins. Under a driveway, across a paver courtyard, or through an established front-yard landscape, trenchless often wins by a wide margin. Get both priced with restoration included in each, which is the only way the numbers are comparable.

Verifying the work, and keeping the record

Ask for the final camera footage and keep a copy. You are looking for a continuous smooth liner from end to end, no wrinkling or folds, no gap at the terminations, and branch connections cleanly cut back open.

Ask what the warranty covers and get it in writing, material and workmanship are often separate. And keep the pre-work footage alongside it, because the pair together is the clearest record of what you bought that you will ever have.

Trenchless done properly is a decades-long solution. Done badly it is genuinely difficult to remediate, since the next contractor is working inside a liner rather than a pipe. The footage is what makes the difference visible.
